What Role Does an Electrical Distribution Board Play for a Commercial Building?

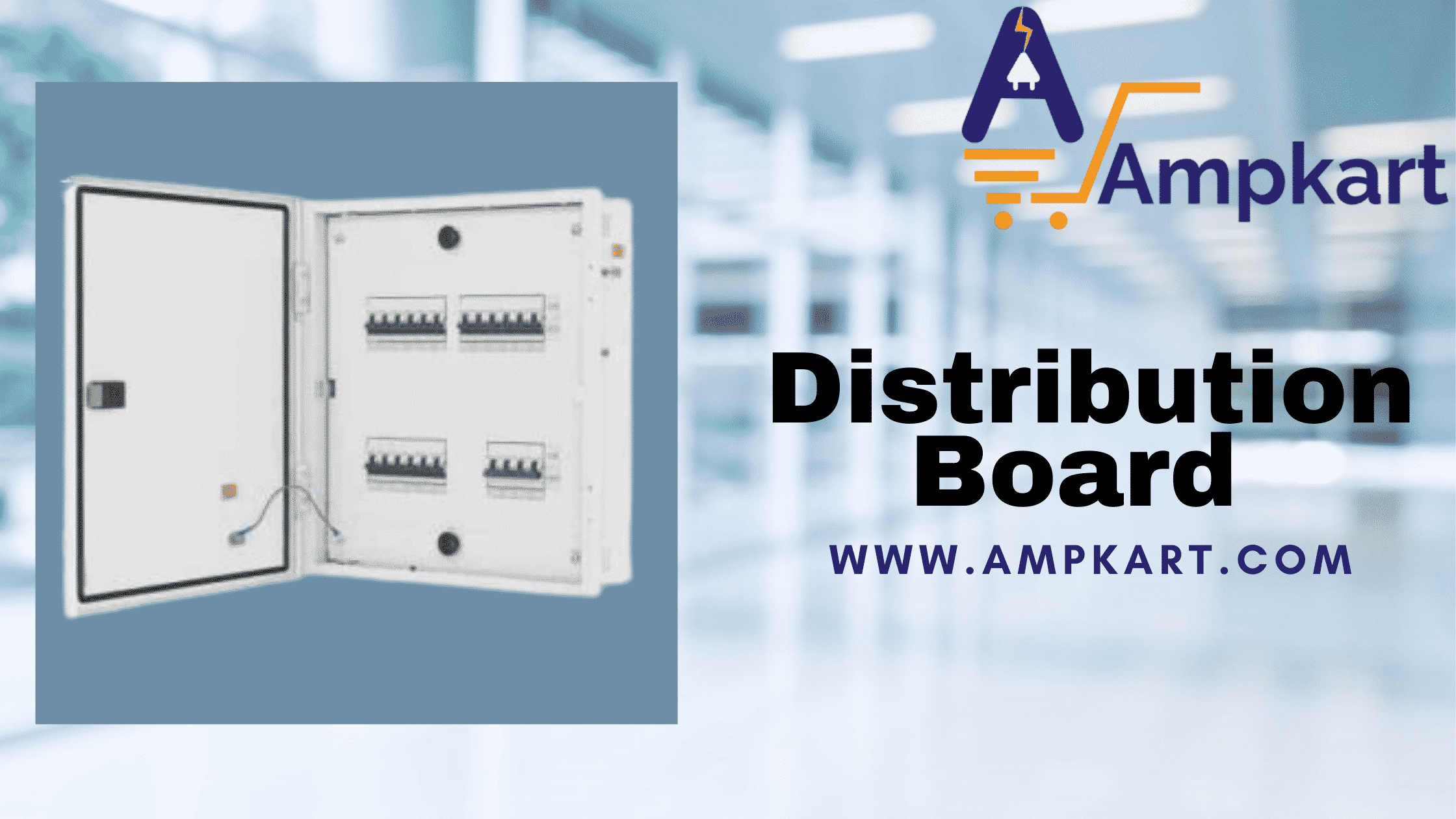

Distribution Board

Do you remember switching on the light on the 20th floor of your building? How long did it take to light up? A few seconds, right? Well, all thanks to the electrical distribution board of your building!

Electrical distribution boards are an essential part of any building; residential or commercial. These systems aid in the smooth flow of electricity throughout the infrastructure. The distribution board is responsible for supplying varying voltages to different consumption points in the building.

The Generic Configuration of an Electrical Distribution Board

The basic configuration of most distribution boards is similar. Just like all boards, the Siemens distribution board consists of various gadgets. This is because the distribution board is an overall system in itself. It consists of neutral links, interconnected wires, and earth leakage units.

The main component of the electrical distribution boards is the circuit breaker. This circuit breaker is specially equipped to distribute the total amount of electricity amongst the other miniature circuit breakers (MCB). These electric units are passed from the miniature circuit breakers to the individual power outlets through wires and cables. Often these cables are also attached to the electrical distribution board but are placed opposite the feeder electric cable.

  • Siemens Betagard SPN DB Box
    Siemens Betagard SPN DB Box
    7562,174
  • Siemens Betagard TPN DB Box Horizontal
    Siemens Betagard TPN DB Box Horizontal
    3,2168,818

Other Essential Components of Electrical Distribution Boards

Along with these components, there are other pertinent components in an Electrical Distribution Board. These include fuse links, residual current detector (RSD), switches, bus bar, and bypass equipment. Each of these components plays a vital role in providing safety to a building from electrical accidents. For example, the residual current detector (RSD) prevents the infrastructure from issues such as ground fault shock and fire due to a short circuit. The bypass equipment, on the other hand, prevents the board from issues such as power overloading, etc.

Electrical Distribution Boards can be Personalized

You may have often heard that all commercial buildings require the same kind of Legrand distribution board. However, that is not at all true! All electrical distribution boards are customizable. Each electrical distribution board is prepared according to the needs and requirements of the infrastructure. This is why they vary from one building to another.

Despite varying from building to building, the components are the same for each board. This means that each board consists of fuse-links, switches, etc. However, the number of these components varies.

  • Legrand Ekinox 12 way SPN DB Double Door Metal IP43 5076 12 Front View of Door
    Legrand Ekinox SPN DB Box Double Door Metal IP43
    1,2972,430
  • Buy What Role Does an Electrical Distribution Board Play for a Commercial Building? Online at Best Prices
    Legrand Ekinox TPN DB Box Double Door Metal IP43
    3,1827,049

Delivering the Correct Amount of Voltage and Ensuring Building Safely

The importance of the electrical distribution board is such that it constantly needs to be checked and old devices needed to be replaced with new ones. But this can be a tricky job. Before doing so, it is important to get these devices tested and approved by a professional electrician. Moreover, it is strictly not advisable for any person to handle these devices without prior experience or assistance.

Due to the high distribution board price, most people do not consider setting it up in their residential or commercial buildings. However, to attain maximum performance, efficiency, and safety is it immensely important to set up a reliable electrical distribution board in your commercial building. Nevertheless, you will need to ensure that you use all switches and circuit breakers that are compatible with the main system.

  • L&T Exora SPN DB Box
    L&T Exora SPN DB Box
    9822,509
  • Schneider Acti9 SPN DB Box Metal
    Schneider Acti9 SPN DB Box Metal
    1,0872,742
  • L&T Tripbox SPN DB Box1
    L&T Tripbox SPN DB Box
    6461,924
