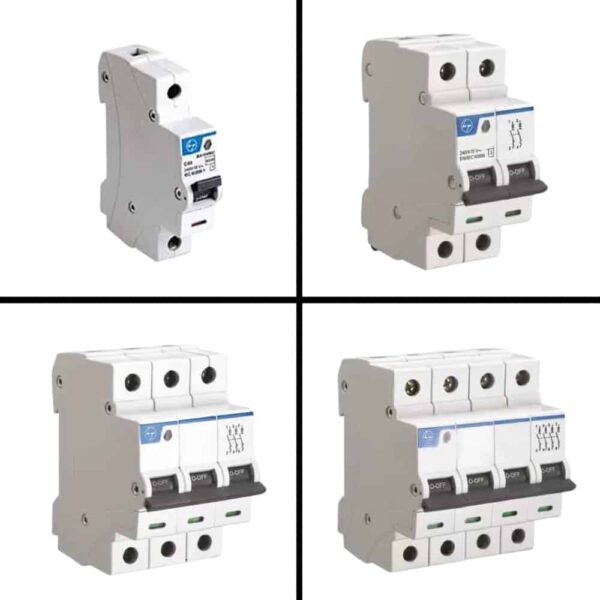

L&T Tripper MCB 6kA ‘C’

L&T Switchgear Tripper MCB ‘C’ Curve Description

Features and Details:

• ISI marked & CE marked
• Conforms to IS/IEC 60898
• Higher life because of heavy-duty contacts
• Cooler operation due to breathing space between two poles
• Energy Saving – Low Watt Loss- 50%
• True Contact indication for enhanced Safety
• High-quality fire retardardant material

What is MCB?

A Miniature Circuit Breaker (MCB) is a pivotal component in electrical circuits designed to protect against overcurrents and short circuits. Unlike traditional fuses, MCBs provide a reusable and efficient solution for safeguarding electrical systems.

Ampere Ratings in MCB:

• 6-10A: Suitable for lighting circuits and small appliances like LED bulbs and fans.
• 16A: Suitable for appliances like laptops and refrigerators.
• 20-32A: Ideal for larger appliances and equipment, such as air conditioners and washing machines.
• 40-63A: Used for power heavy appliances like Hot Tubs, Electric Showers, etc.
• 70A-125A: Geared towards heavy-duty industrial applications with substantial loads.

Tripping Curve of an MCB:

The tripping curve of an MCB describes its response time to different levels of overcurrent. It helps determine how quickly the MCB will trip (disconnect the circuit) in response to a fault condition.

• B Curve (General-Purpose): It's commonly used in residential and light commercial applications.
• C Curve (Commercial): It is suitable for protecting circuits with motors, transformers, or other inductive loads.
• D Curve (Industrial): It is suitable for protecting circuits with heavy machinery, large motors, or power distribution networks.
• K Curve (Industrial): The K curve is specifically designed for circuits with high inrush currents.
• Z Curve: This curve is used for sensitive electronic circuits where even small overcurrents can cause damage.

Breaking Capacity (kA) in MCB:

Breaking capacity, often referred to as interrupting capacity, is a crucial specification for MCBs. It indicates the maximum fault current that the MCB can safely interrupt without sustaining damage.

• 3-7 kA: Designed to handle residential and light commercial applications.
• 7-10 kA: commercial and industrial settings
• 10-20 kA: Geared towards heavy industrial applications or heavy machinery with high fault levels.
• 20-100kA: Used in critical applications such as in large industrial facilities or power distribution networks.
