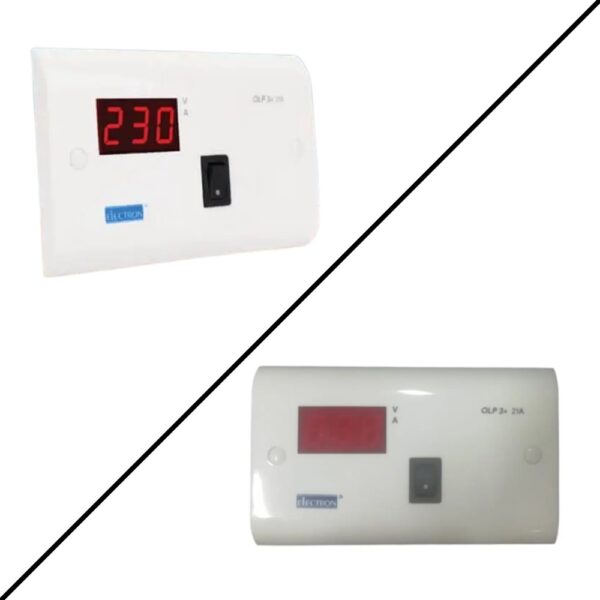

Electron Air Conditioner Starter 1 Phase OLP3+ Description
- Today, air-conditioners are usually the highest energy-consuming appliance in a home, and also one of the most expensive. The all-new OLP 3+ is an advanced microprocessor-controlled motor starter designed to ensure the safety and long life of your air-conditioner using the time-tested combination of VOLTCHECK, AMPCHECK, and TIME CHECK. The vivid 3-digit display shows all operational parameters such as voltage, current, the reason for the trip, and time remaining till reset, for user interest and awareness of their AC’s consumption characteristics. Available in 11A, 16A, 21A, 25A, 27A and 30A configurations.
Rated Voltage | 240V (P-N), 50 Hz, 1 phase |
Rated Current(AC1) | Up to 30A |
Under/over-voltage protection | 160-270V |
Operating voltage range | 90-320 V |
Electrical Endurance(Operations) | 100,000 |
Enclosure Materials | Polycarbonate (Flame-retardant) |
Mounting Type | 4-module box |
Mounting Center | 120 mm |
Terminal Capacity | 10 mm2 |
Dimensions in mm(W X H X D) | 146 X 88 X 44 |
Protection Class | IP20 |
Ambient Temperature | -10°C to 65°C |
Display Parameters | Line Voltage, Current, Fault Indication, Time before the restart |
Protection Features | VOLTCHECK, AMPCHECK, TIMECHECK |
VOLTCHECK :
- OLP 3+ monitors the line voltage and trips if safe Rated Current limits (160-270V) are breached. If tripped, the reason (Hi/Lo) and value of unsafe voltage are shown.
AMPCHECK :
- Current drawn by the AC is monitored continuously, and the output is disconnected if this exceeds a pre-set limit. This protects against damage due to rotor locking or excessively long start-up time. Tripping follows an inverse time-current characteristic – the higher the overload, the faster the tripping response. After tripping, the overload current is shown on the display.
TIMECHECK :
- On tripping, OLP 3+ holds the output open for a duration of 3 minutes from the time of last compressor operation and then restarts the AC automatically. This is an important safety measure for the compressor. When TIME CHECK is active, the display indicates the number of minutes left for Protection Features VOLTCHECK, AMP- AC to restart, along with trip information.
